Product Image DVK522 Kit for Cubieboard2 Cubieboard A10 - Arduino Baseboard + 7" LCD + Modules

DVK522 Kit for Cubieboard2 Cubieboard A10 - Arduino Baseboard + 7" LCD + Modules

$119.99 $128.99

In order to cooperate with our distributors, we are not selling our products on this website for retail customers. All the items on this website have suggested retail prices. If your order is greater than 50 pieces or $1,000 USD, please contact us directly. We will provide our most competitive wholesale price to you, and the shipping turn around time will be in 3-5 business days.

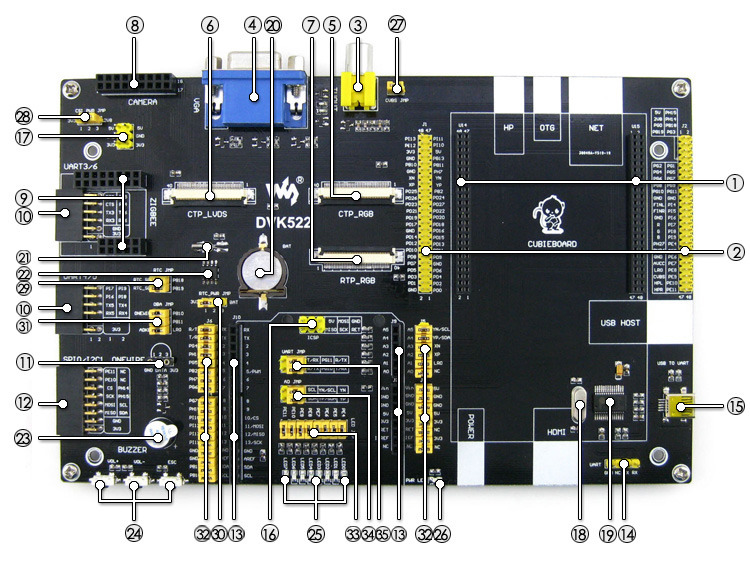

DVK522 is an expansion board designed for Cubieboard1/2, integrates various components and interfaces for connecting external accessory boards. It’s ideal for Cubieboard evaluation and development.

  1. Cubieboard1/2 socket
  2. Cubieboard1/2 IO expansion ports
  3. TVOUT interface: video CVBS output, for connecting display devices like TV
  4. VGA interface: VGA output, for connecting monitor
  5. 7inch capacitive touch LCD RGB interface
  6. 7inch capacitive touch LCD LVDS interface
  7. 7inch resistive touch LCD RGB interface
  8. CAMERA interface: for connecting camera OV7670 modules
  9. ZIGBEE connector: for connecting ZigBee Core2530 modules, supports working with ZB501
  10. UART interface: for connecting UART modules, such as RS485 Board (3.3V), GPS module, etc.
  11. ONEWIRE interface: for connecting ONEWIRE devices (TO-92 package), such as temperature sensor (DS18B20).
  12. SPI0/I2C1 interface: for connecting SPI or I2C modules, such as MAG3110 Board, AT45DBXX Dataflash, etc.
  13. Arduino connector: for connecting compatible Arduino boards
  14. UART interface (PL2303TA): for connecting the UART0 of Cubieboard1/2 for debugging
  15. USB interface: USB TO UART (PL2303TA)
  16. ICSP interface: Arduino ICSP
  17. 5V/3.3V power input/output interface: usually used as power output, also common-grounding with other user board
  18. 12M crystal: for PL2303TA
  19. PL2303TA: onboard USB TO UART convertor
  20. RTC backup battery: 3.3V battery
  21. 32.768K crystal: for PCF8563
  22. PCF8563: onboard RTC chip
  23. Buzzer
  24. AD keys: 3 common Android keys (VOL+、VOL-、ESC)
  25. User LEDs: 8 LEDs
  26. Power indicator
  27. TVOUT jumper
  28. CAMERA power selection jumper
  29. RTC jumper
  30. RTC power selection jumper
  31. ONE-WIRE, Buzzer, and AD Keys jumper
  32. Arduino Port selection jumper: easily controlling the Arduino connection
  33. User LEDs jumper
  34. Arduino AD selection jumper
    • short the right: while connecting Arduino ADC shield
    • short the left: while connecting Arduino I2C shield
  35. Arduino UART selection jumper
    • short the right: while connecting Arduino UART shield
    • short the left: while connecting Arduino microcontroller board
    Product Details
Package Include:
1. DVK522 board x 1

2. 7" Capacitive Touch LCD x 1

3. AT45DBXX Dataflash Module x 1

4. MAG3110 Board x 1

5. DS18B20 x 1

6. UART GPS x1

7. USB WIFI BL-150UM RTL8188 x1

8. OV7670 Camera Module x 1

9. 4-pin 2-pin wires pack x 1

10. USB type A plug to mini-B plug cable x 1

11. Ethernet Cable x 1

12. 40-pin FFC x 1

13. LCD support-positioning screws pack x 1
